Telescopic SPAN
High bending-moment extendable steel lattice beams for prop-free slab shuttering spans.
Telescopic Span - Hot-Dip Galvanised & Dip Painted Finish
Adjustable Telescopic SPAN Manufacturer & Supplier | Sharnam Infra
• Specifications: Assembled by two telescoping members (Outer Member & Inner Member).
Outer Member:
Manufactured from 2mm HRC sheet (Section), 65 x 6mm MS Flat, 10mm Round Bar, 65x8mm Corner Angle, and Double M20 Nut bolting provision. An extra stiffener of 35x5mm ISA is welded from inside for maximum bending strength & durability.
Inner Member:
Manufactured from 2mm HRC sheet (Section), 40x5mm 'T' section, 10mm Round Bar, and 65x8mm Corner Angle.
Painting: Dip painted & oven dried
Capacity: 3000 Nos/month
Telescopic Span Dimension Ranges & Extension Capabilities
| RANGE MEMBER TYPE | MINIMUM SPAN (MM) | MAXIMUM SPAN (MM) |
|---|---|---|
| ESO / ESI | 1750 mm | 2750 mm |
| SO / ESI | 2350 mm | 3450 mm |
| SO / SI | 2450 mm | 4150 mm |
| LO / SI | 3150 mm | 4950 mm |
| LO / LI | 3150 mm | 5550 mm |
Adjustable Telescopic SPAN Site Applications & Finishes
Hot-Dip Galvanised Metallic Finish

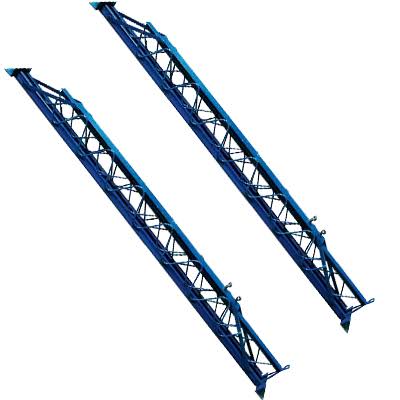

Dip-Painted Blue Inner & Outer Lattice Truss

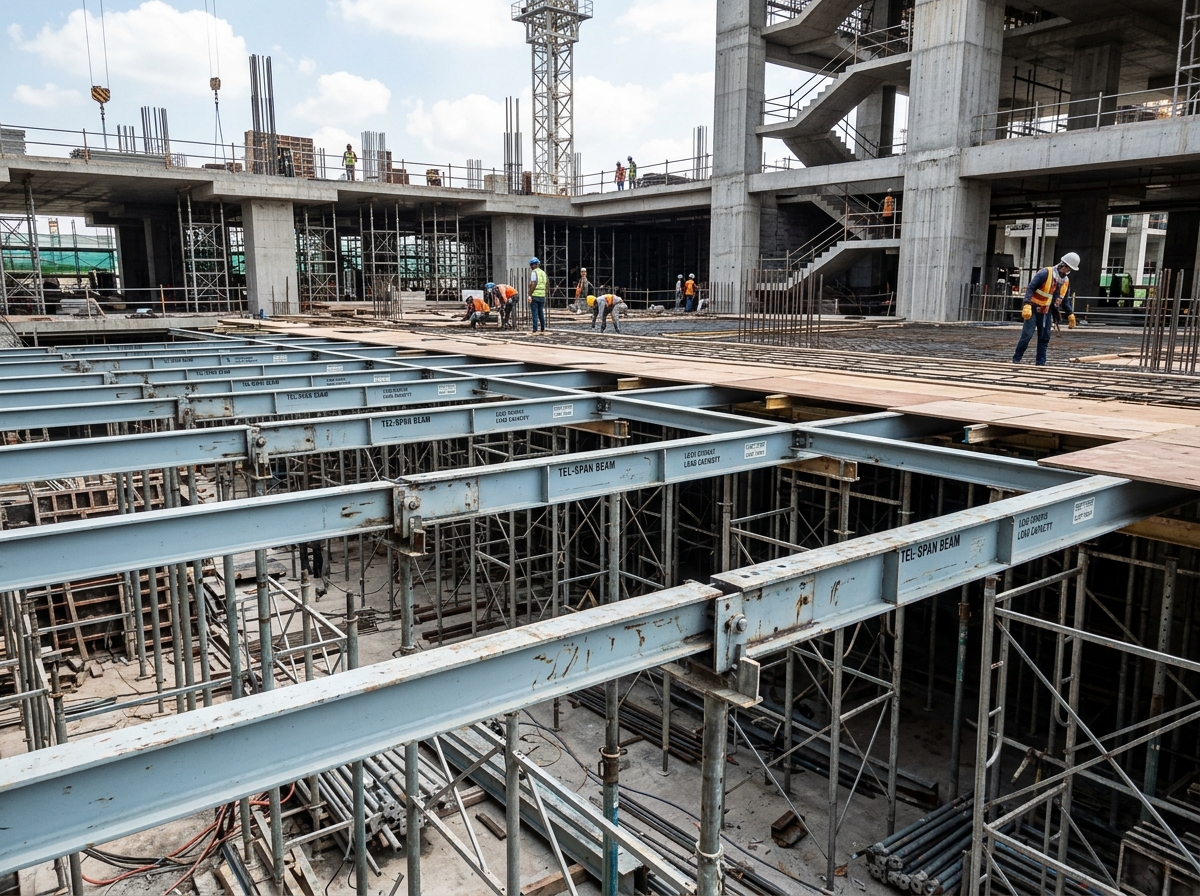

Underneath Slab Pouring Shuttering Support
We Supply Our Telescopic Spans Across All Major Construction Zones Nationwide.
