Angle Centering Plates
Heavy-gauge steel formwork panels & Gabdi adjuster plates for leak-proof concrete slab casting.
Angle Centering Plates - Production Stack View
Angle Centering Plates Manufacturer & Supplier | Custom Sizes Available | Sharnam Infra
Sharnam Infra Solutions Ltd. is a trusted manufacturer and supplier of angle centering plates. Made from 2.0 mm and 1.6 mm thick cold-rolled steel sheets with heavy angle sections (30/35/25 x 30/35/25 x 5/4/3 mm), our plates ensure maximum durability, rigidity, and dimensional precision.
We offer a wide range of standard sizes and custom formwork options, including adjusters (Gabdi Plates) for filling odd slab shapes and irregular corners. Column and beam side plates are also available up to 230 x 2500 mm or custom fabricated to your exact site drawings.
Production Capacity: 8,000 Plates/month
Re-use Cycles: 100+ Pouring Operations
Centering Plate Specifications & Dimension Parameters
| CENTERING PLATE TYPE | SHEET THICKNESS | ANGLE SECTION SPECIFICATION | STANDARD DIMENSIONS |
|---|---|---|---|
| Standard Slab Plate | 2.0 mm (14 Gauge) | 35 x 35 x 5 mm ISA Angle | 900mm x 600mm / 1150mm x 600mm |
| Medium Duty Plate | 1.6 mm (16 Gauge) | 30 x 30 x 4 mm ISA Angle | 900mm x 600mm / 1150mm x 600mm |
| Gabdi Adjuster Plate | 2.0 mm Sheet | 25 x 25 x 3 mm Angle | 300mm / 450mm Width Adjusters |
| Column & Beam Side Plate | 2.0 mm Sheet | 35 x 35 x 5 mm Heavy Angle | Up to 230mm x 2500mm Custom |
Angle Centering Plates Images & Site Views

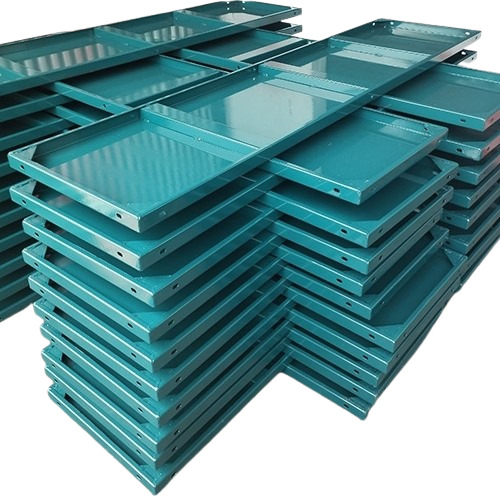

Centering Plate Stack
Angle Centering Plate (Green)
Angle Centering Plate (Brown)

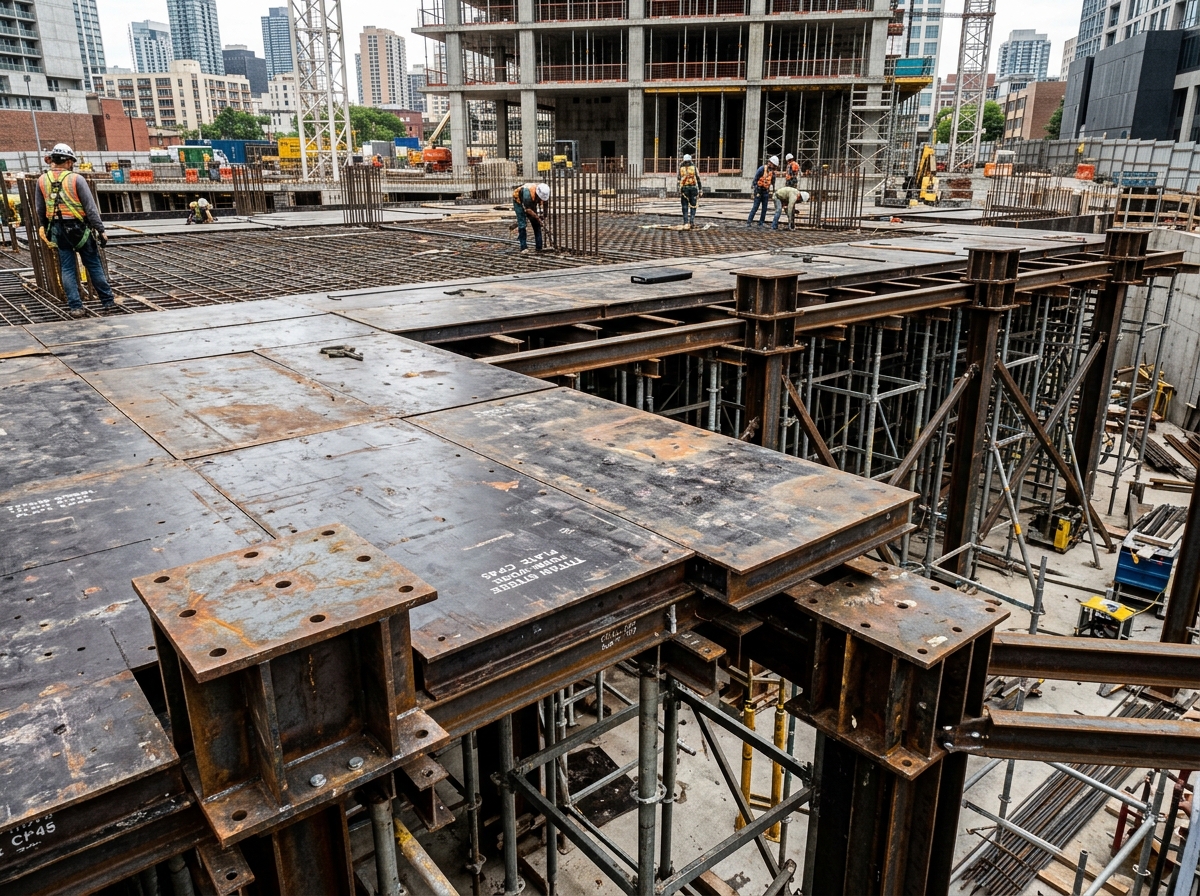

Centering Plate Site Photo
We Supply Our Angle Centering Plates Across All Major Construction Zones Nationwide.
Request Instant Quote →
